General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity33.2 cbm / 1,172 cbft
ISO Type Group22 GP
ISO Size Type22 G1

Standard / Hardtop

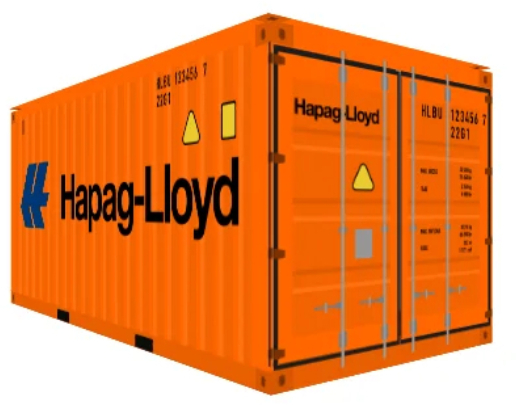

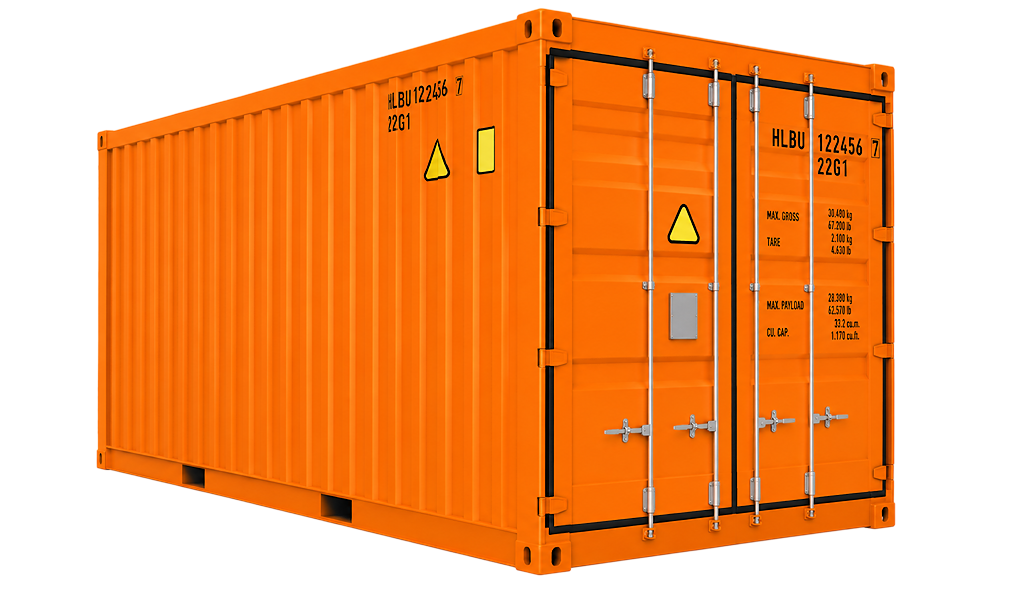

  • 20' Standard

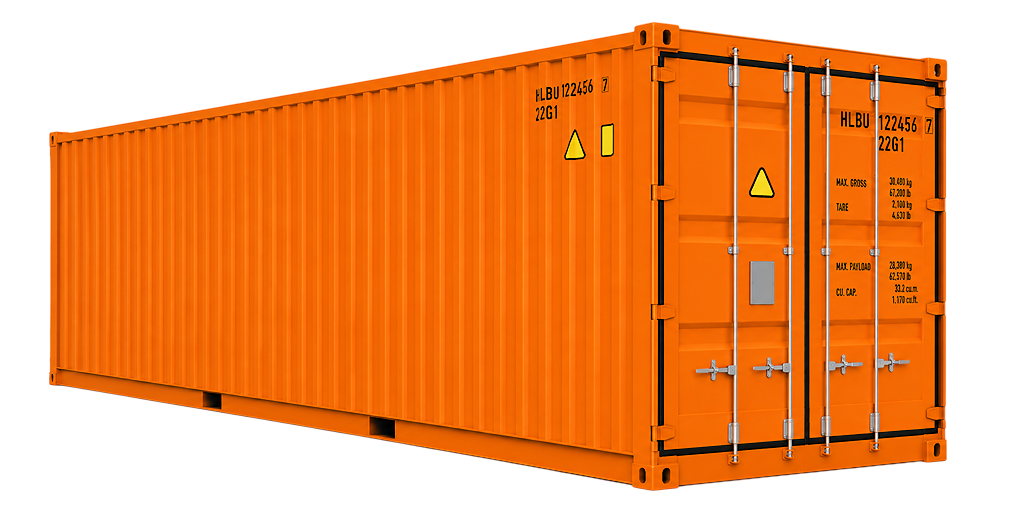

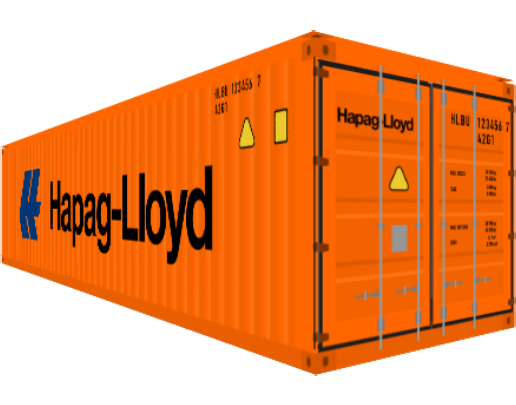

  • 40' Standard
  • 40' Standard High Cube

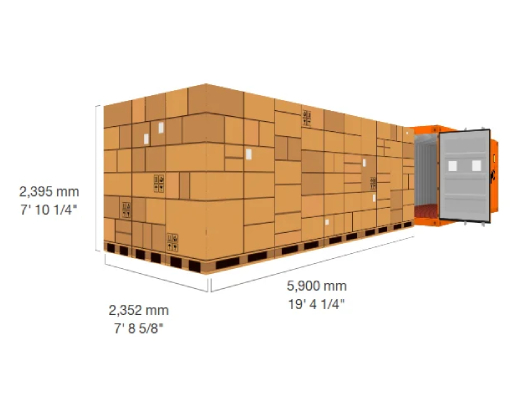

Inside Dimension

MeasureLengthWidthHeight
Millimeters5,9002,3522,395
Feet19′ 4 1/4″7′ 8 5/8″7′ 10 1/4″

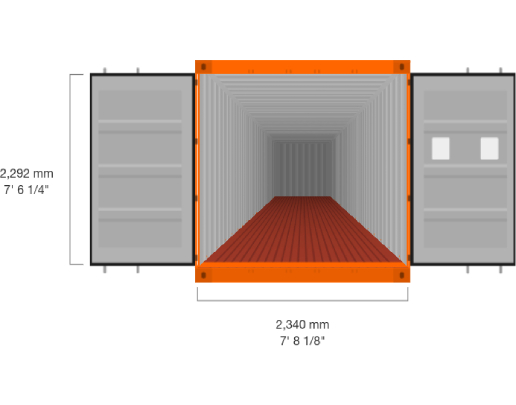

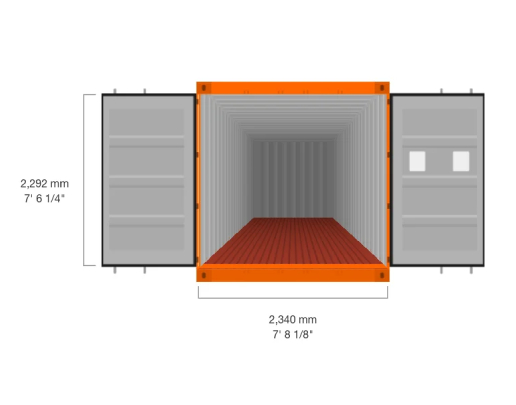

Door Opening

MeasureWidthHeight
Millimeters2,3402,292
Feet  7′ 8 1/8″7′ 6 1/4″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms30,4802,35028,130
Pounds67,1975,18162,016

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity67.7 cbm / 2,390 cbft
ISO Type Group42 GP
ISO Size Type42 G1

Standard / Hardtop

  • 20' Standard
  • 40' Standard
  • 40' Standard High Cube

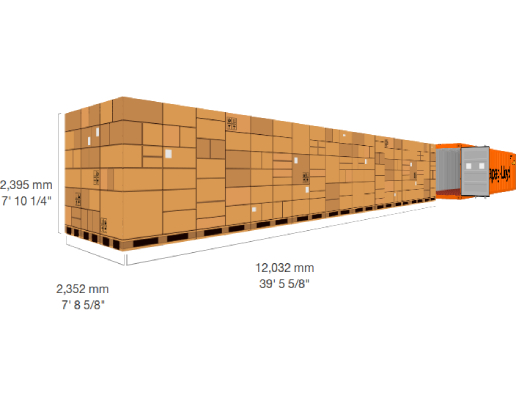

Inside Dimension

MeasureLengthWidthHeight
Millimeters12,0322,3522,395
Feet39′ 5 5/8″7′ 8 5/8″7′ 10 1/4″

Door Opening

MeasureWidthHeight
Millimeters2,3402,292
Feet7′ 8 1/8″7′ 6 1/4″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms32,5003.75028,750
Pounds71,6508,26763,383

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity76.3 cbm / 2,694 cbft
ISO Type Group45 GP
ISO Size Type45 G1

Standard / Hardtop

  • 20' Standard
  • 40' Standard
  • 40' Standard High Cube

Inside Dimension

MeasureLengthWidthHeight
Millimeters12,0322,3522,395
Feet39′ 5 5/8″7′ 8 5/8″7′ 10 1/4″

Door Opening

MeasureWidthHeight
Millimeters2,3402,292
Feet7′ 8 1/8″7′ 6 1/4″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms32,5003.75028,750
Pounds71,6508,26763,383

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity32.5 cbm / 1,149 cbft
ISO Type Group22 UT
ISO Size Type22 U1

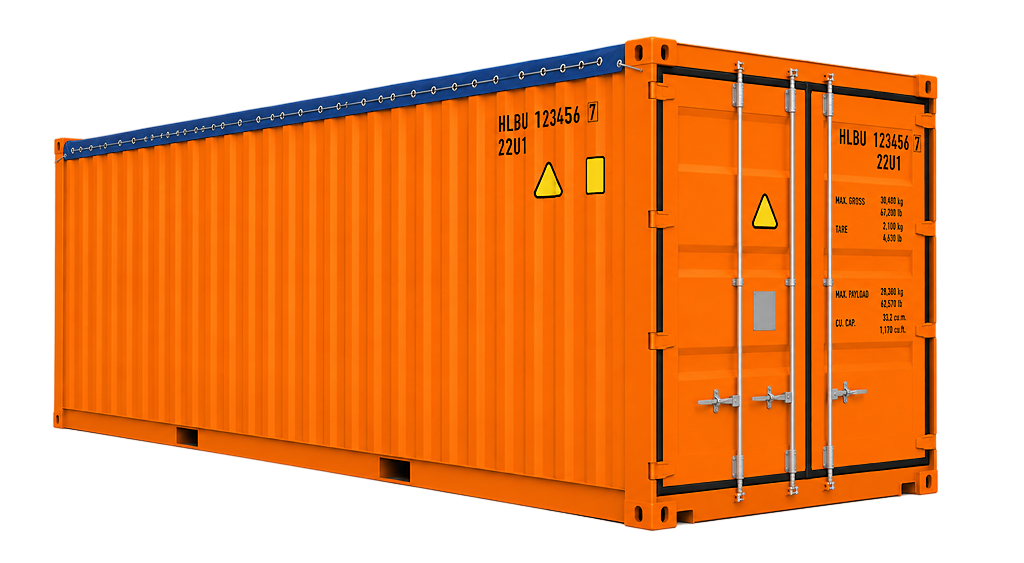

Open Tops

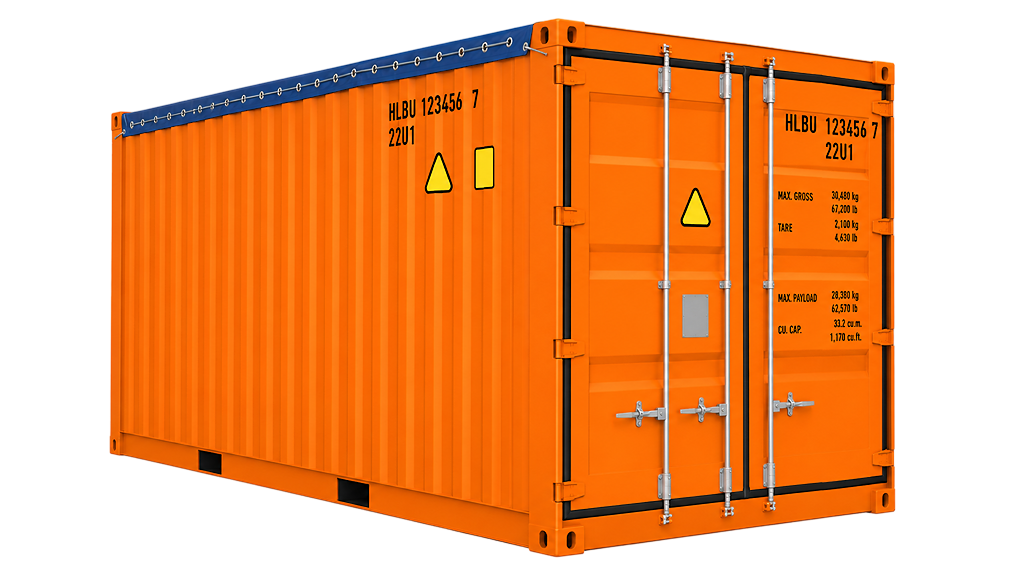

  • 20' Open Top
  • 20' Open Top High Cube
  • 40' Open Top
  • 40' Open Top High Cube

Inside Dimension

MeasureLengthWidthHeight
Millimeters5,8952,3502,340
Feet19′ 4 1/8″7′ 8 1/2″7′ 8 1/8″



Door Opening

MeasureWidthHeight
Millimeters2,3382,280
Feet7′ 8″7′ 5 3/4″



Roof Opening

MeasuresWidthLength
Millimeters2,2305,338
Feet7′ 3 3/4″17′ 6 1/8″



Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms32,5002,45030,050
Pounds71,6505,40266,248



General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity66.8 cbm / 2,359 cbft
ISO Type Group42 UT
ISO Size Type42 U1

Open Tops

  • 20' Open Top
  • 20' Open Top High Cube
  • 40' Open Top
  • 40' Open Top High Cube

Inside Dimension

MeasureLengthWidthHeight
Millimeters12,0292,3502,344
Feet39′ 5 1/2″7′ 8 1/2″7′ 7 1/4″
no roof bars  2,420



Door Opening

MeasureWidthHeight
Millimeters2,3402,276
Feet7′ 8 1/8″7′ 5 3/4″

Roof Opening

MeasuresWidthLength
Millimeters2,23011,552
Feet7′ 3 3/4″37′ 10 3/4″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms32,5004,05028,450
Pounds71,6508,92962,721



General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity74.9cbm / 2,645cbft
ISO Type Group45 UT
ISO Size Type45 U1



Open Tops

  • 20' Open Top
  • 20' Open Top High Cube
  • 40' Open Top
  • 40' Open Top High Cube

Inside Dimension

MeasureLengthWidthHeight
Millimeters12,0292,3522,649
Feet39′ 5 1/2″7′ 8 5/8″8′ 8 1/4″
no roof bars  2,720

Door Opening

MeasureWidthHeight
Millimeters2,3522,570
Feet7′ 8 5/8″8′ 5 1/8″

Roof Opening

MeasuresWidthLength
Millimeters2,19211,552
Feet7′ 2 1/4″37′ 10 3/4″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms32,5004,25028,250
Pounds71,6509,37062,281



General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

ISO Type Group22 PC
ISO Size Type22 P3

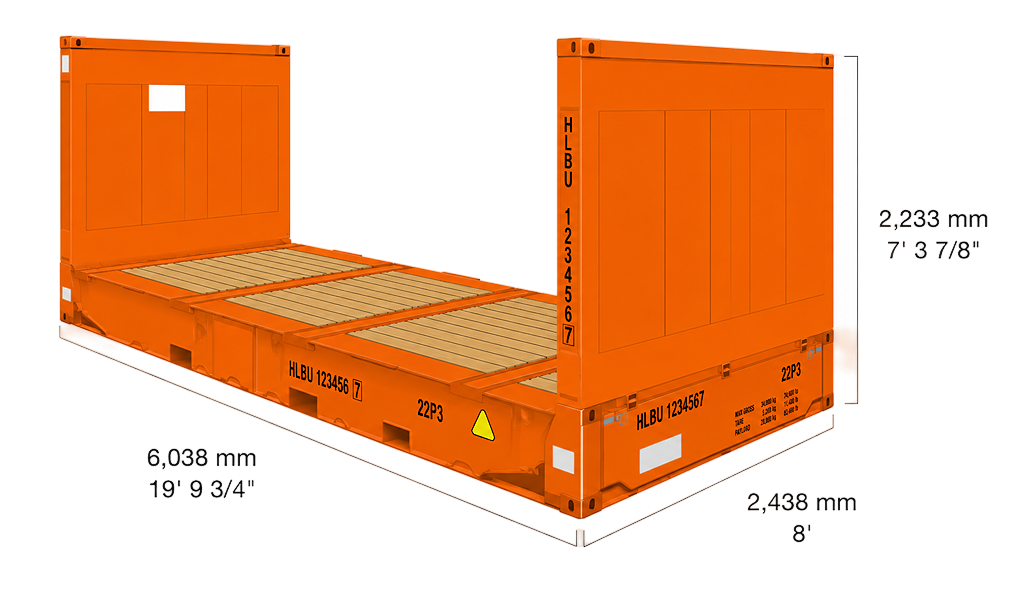

Flatracks

  • 20' Flatrack
  • 40' Flatrack High Cube / 40' Platform

Inside Dimension

MeasureLength Min.Width FloorWidth Min.HeightHeight Bottom
Millimeters5,6382,4382,1942,233370
Feet18′ 6″8′7′ 2 3/8″7′ 3 7/8″1′ 2 1/2″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms45,0002,90042,100
Pounds99,2006,40092,800

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

ISO Type Group45 PC
ISO Size Type45 P3

Flatracks

  • 20' Flatrack
  • 40' Flatrack High Cube / 40' Platform

Inside Dimension

MeasureLength Min.Width FloorWidth Min.HeightHeight Bottom
Millimeters11,6522,3472,2452,265648
Feet38′ 2 3/4″7′ 8 3/8″7′ 4 3/4″7′ 4 1/8″2′ 1 1/2″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms55,0005,90049,100
Pounds121,25012,900108,350

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity28,1 cbm / 1,006 cbft
ISO Type Group22 RT
ISO Size Type22 R1

Reefer

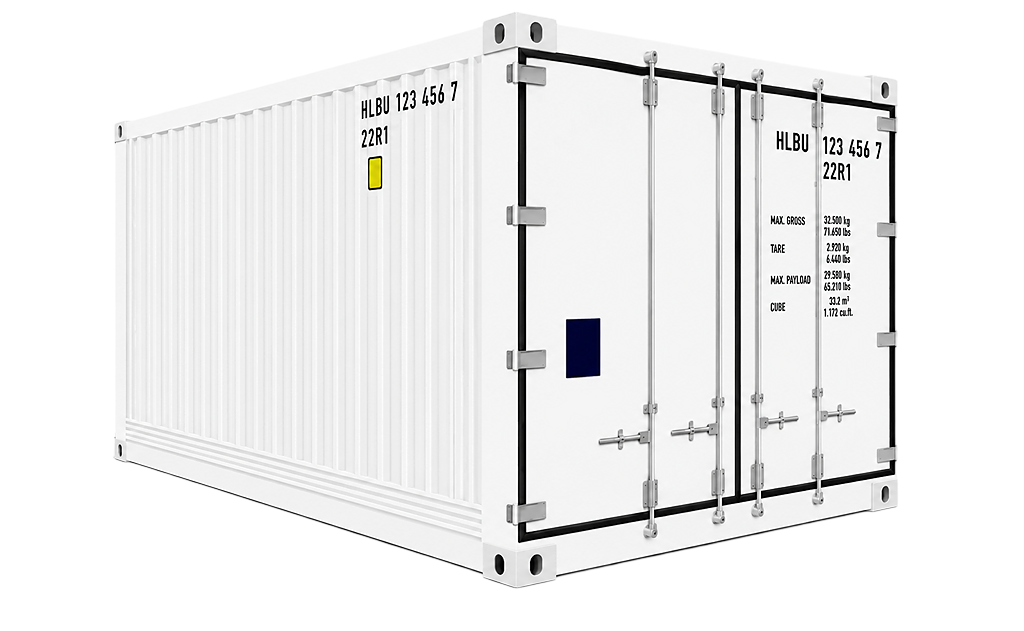

  • 20' Reefer
  • 40' Reefer High Cube

Inside Dimension

MeasureLengthWidthHeight
Millimeters5,4502,2802,159
Feet17′ 10 1/2″7′ 5 3/4″7′ 1″

Door Opening

MeasureWidthHeight
Millimeters2,2902,264
Feet7′ 6 1/8″7′ 5 1/8″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms32,0002,86029,140
Pounds70,5476,30564,242

General Container Information

Please note: The specifications supplied here are only meant to serve as an example for containers in Hapag-Lloyd’s container fleet, as containers vary depending on their particular manufacturer. Should you have special equipment-related requirements for your shipment, we kindly ask you to contact one of our customer service representatives.

Capacity67.7 cbm / 2,387 cbft
ISO Type Group45 RT
ISO Size Type45 R1

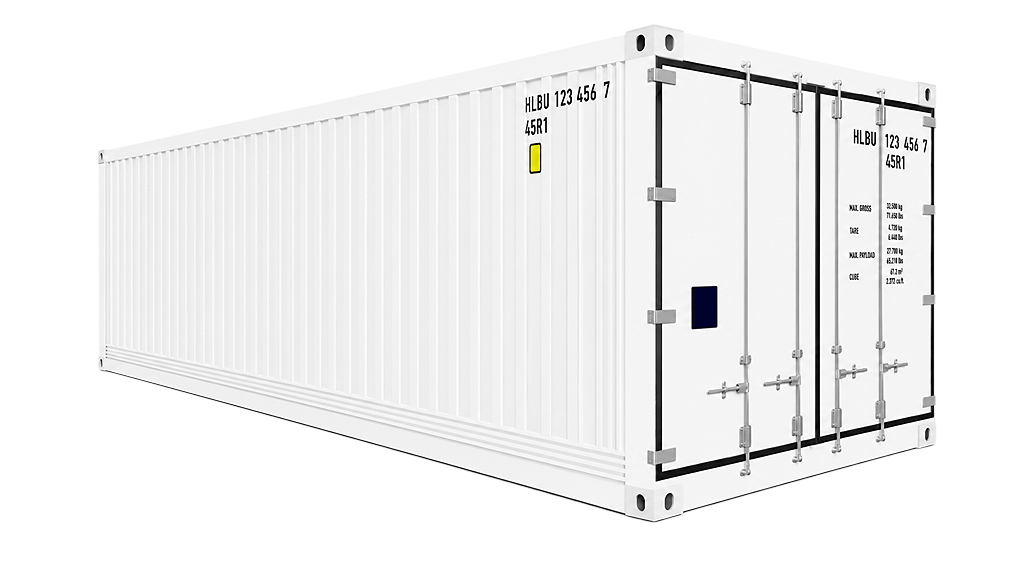

Reefer

  • 20' Reefer
  • 40' Reefer High Cube

Inside Dimension

MeasureLengthWidthHeight
Millimeters11,5992,2902,425
Feet38′ 1/4″7′ 6 1/8”7′ 11 1/2″

Door Opening

MeasureWidthHeight
Millimeters2,2902,557
Feet7′ 6 1/8 ”8′ 4 5/8″

Weight

MeasureMax GrossTare (Weight)Max Payload
Kilograms34,0004,42029,580
Pounds74,9569,74465,212
